Product Specifications
- Model / Series
- NB12-220A
- Product Dimensions
- 86 × 83 × 38 mm
- System Voltages
- 12V DC
- Conversion Efficiency
- >82% (full load)

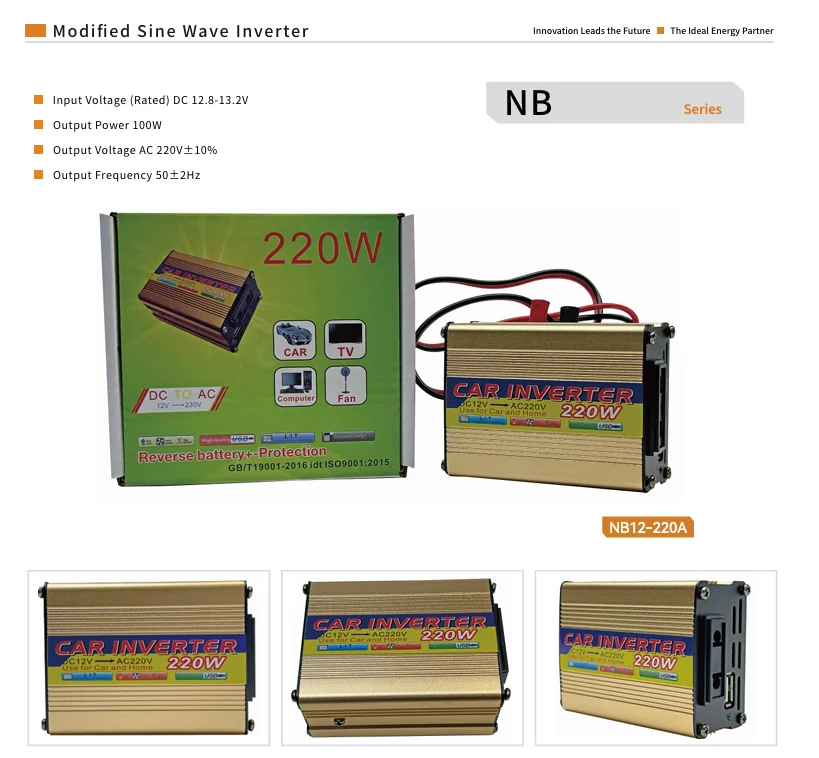

The NB12-220A series converts 12 V DC battery power to 220 V AC modified sine wave output. NB12-220A provides 100 W rated output power, with a USB output for compatible 5 V devices. Quote NB12-220A explicitly in the inquiry so the supplied model can be checked against the approved sample.
Key Features
- 100 W rated modified sine wave output
- DC 12 V input to AC 220 V output
- 50 Hz output frequency
- 5 V / 0.8 A USB output
- Full-load efficiency above 82%
- Compact metal housing
Technical Specifications
| Specification | NB12-220A |
|---|---|
| Rated output power | 100 W |
| Peak power | 200 W |
| Nominal input | 12 V DC |
| Rated input voltage | 12.8–13.2 V DC |
| Input voltage range | 9.5–15 V DC |
| Output voltage | 220 V AC ±10% |
| Output frequency | 50 ± 2 Hz |
| USB output | 5 V / 0.8 A |
| Full-load efficiency | >82% |
| Product dimensions | 86 × 83 × 38 mm |
| Net weight | 160 g |
Protection functions include overvoltage/undervoltage alarms, overload shutdown alarm, short-circuit protection and reverse-polarity alarm.
Applications
For battery-to-AC power conversion in off-grid or mobile installations using equipment confirmed to accept modified sine wave output. Wholesale buyers should validate the intended load with the selected voltage version before specifying a project.
Battery & PV Compatibility
Connect the inverter to a battery supply that matches its specified DC input. Verify the battery discharge capability, cables, protection devices and the equipment’s AC voltage and waveform requirements. PV modules require a separate, correctly matched solar charge controller; do not connect them directly to the inverter battery input. Modified sine wave output must not be assumed suitable for every motor, compressor or sensitive electronic load.
OEM & Order Information
For NB12-220A, send the required DC input, AC output, plug requirements and intended load, destination market and order quantity. Ask GERIXI sales to confirm logo, label and packaging customization availability, MOQ, quotation and technical documentation for the exact configuration.
FAQ
Can NB12-220A be ordered with custom labeling?
Send the exact model reference and AC plug requirements with your label artwork and quantity. GERIXI sales will confirm which branding and packaging options are available.
What documents should importers request for NB12-220A?
Ask for the technical specification and applicable compliance documents covering the exact voltage version. Confirm the document scope with your destination-market requirements before ordering.
How can buyers confirm warranty and load suitability?
Send the intended equipment and its running and starting demand. Request the written warranty terms and service process for the agreed order configuration.
