Product Specifications
- Model / Series
- NFC12-2000 / NFC24-2000
- Product Dimensions
- 292 × 160 × 102 mm
- System Voltages
- 12V / 24V DC (version dependent)
- Conversion Efficiency
- >82%

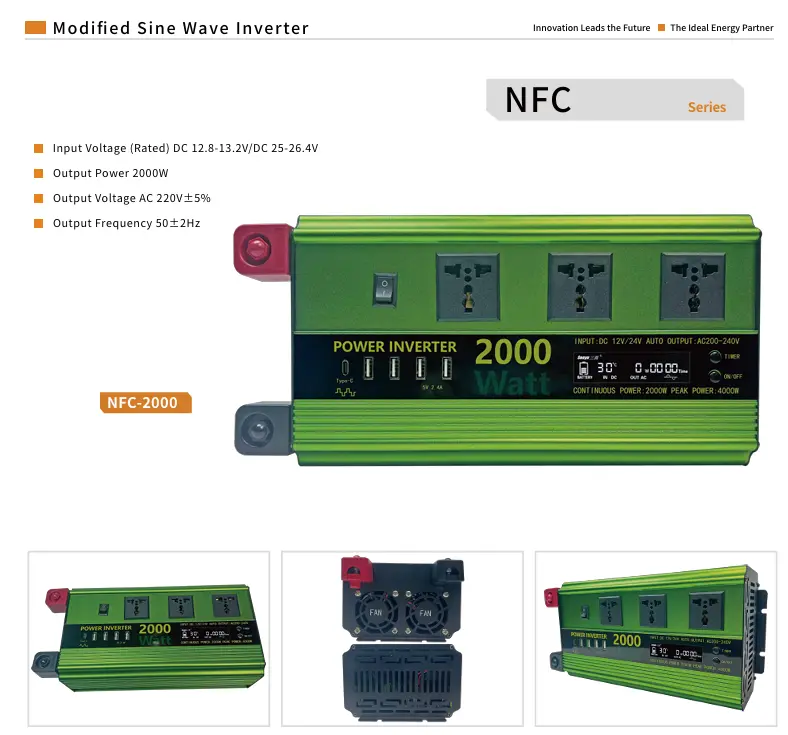

The NFC-2000 provides 2000 W ±5% continuous modified sine wave output with three AC sockets and a digital status display. It offers project buyers a battery-to-220 V AC option when the connected equipment is confirmed to accept this waveform. Choose the matching 12 V or 24 V input version. Contact GERIXI to discuss bulk supply and OEM requirements.
Key Features
- 2000 W ±5% continuous modified sine wave output
- Three AC sockets and a digital status display
- 12 V and 24 V input models for 220 V AC systems
- 5 V / 2.4 A USB charging output
- Twin cooling fans and a ventilated enclosure
- High/low voltage, overload, short circuit and reverse polarity protection
Technical Specifications
| Model / Series | NFC-2000 |
|---|---|
| Input model options | NFC12-2000 / NFC24-2000 |
| Label power | 2000 W |
| Continuous output power | 2000 W ±5% |
| Output waveform | Modified sine wave |
| Nominal DC input | 12 V or 24 V, depending on version |
| DC operating range | 12 V version: 9.5–15 V; 24 V version: 19–30 V |
| AC output voltage | 220 V AC |
| AC output frequency | 50 Hz ±2 Hz |
| USB output | 5 V / 2.4 A |
| Full-load efficiency | >82% |
| Product dimensions | 292 × 160 × 102 mm |
| Net weight | 2685 g |
| Packing quantity | 6 units/carton |
Applications
For off-grid battery systems, mobile installations and backup-power projects using compatible 220 V equipment. Installers should check combined load demand across all three sockets; additional sockets do not increase the inverter’s total output rating.
Battery & PV Compatibility
Select the DC input model to match the battery bank and verify its discharge capability, operating voltage, cable sizing and protection devices. Confirm the supplied unit’s input rating before connection. Use a separate, correctly matched solar charge controller for PV charging; do not connect PV modules directly to the inverter battery input. Check the equipment manufacturer’s waveform requirements and starting demand. Modified sine wave output should not be assumed suitable for every motor, compressor or sensitive electronic load.
OEM & Order Information
For NFC-2000, send your input voltage, socket requirements, intended load, destination market and quantity. Contact GERIXI sales to confirm logo, label and packaging customization, MOQ, quotation and model-specific technical documents. Confirm the exact configuration and commercial terms before ordering.
FAQ
What information is needed for a branded NFC-2000 order?
Specify the 12 V or 24 V model, socket requirements, packaging artwork and purchase quantity. Sales will confirm customization feasibility, MOQ and lead time.
Can one certificate be assumed to cover every NFC configuration?
No. Ask for the applicable documents naming the ordered model and verify their scope for your destination market before shipment.
What should a project buyer check before agreeing warranty terms?
Submit the expected combined load, starting demand and cooling arrangement. Request written load-suitability confirmation and the warranty and service terms for the agreed configuration.
Related Products
For comparison, ask GERIXI sales about NFC-1000 and NFC-3000. Compare continuous output, enclosure dimensions and DC input model before choosing an alternative.
