Product Specifications
- Model / Series
- NFC12-3000 / NFC24-3000
- Product Dimensions
- 392 × 160 × 102 mm
- System Voltages
- 12V / 24V DC (version dependent)
- Conversion Efficiency
- >82%

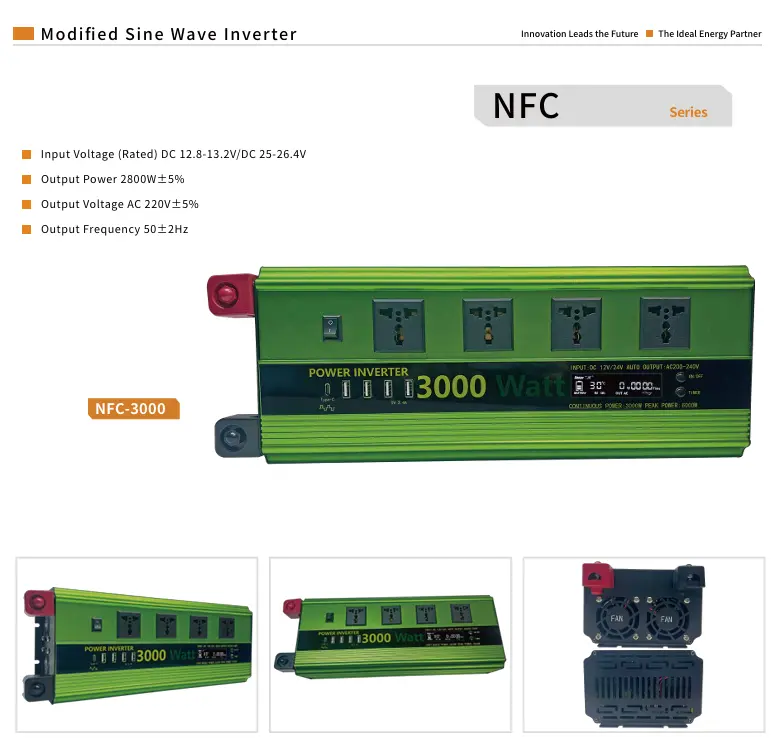

The NFC-3000 is a modified sine wave inverter with a 3000 W power label and a catalog continuous output specification of 2800 W ±5%. Four AC sockets and a 392 × 160 × 102 mm enclosure distinguish this model for distributors comparing larger battery-to-220 V AC systems. Choose the matching 12 V or 24 V input version. Contact GERIXI to discuss bulk supply and OEM requirements.
Key Features
- 3000 W label power; 2800 W ±5% catalog continuous output
- Four AC sockets for compatible 220 V equipment
- Separate 12 V and 24 V DC input models
- Digital status display and 5 V / 2.4 A USB output
- Twin cooling fans in a 392 × 160 × 102 mm enclosure
- High/low voltage, overload, short circuit and reverse polarity protection
Technical Specifications
| Model / Series | NFC-3000 |
|---|---|
| Input model options | NFC12-3000 / NFC24-3000 |
| Label power | 3000 W |
| Continuous output power | 2800 W ±5% |
| Output waveform | Modified sine wave |
| Nominal DC input | 12 V or 24 V, depending on version |
| DC operating range | 12 V version: 9.5–15 V; 24 V version: 19–30 V |
| AC output voltage | 220 V AC |
| AC output frequency | 50 Hz ±2 Hz |
| USB output | 5 V / 2.4 A |
| Full-load efficiency | >82% |
| Product dimensions | 392 × 160 × 102 mm |
| Net weight | 3500 g |
| Packing quantity | 6 units/carton |
Applications
For project integrators and importers supplying larger battery-to-AC installations. Size the complete load against the catalog continuous output of 2800 W ±5%, rather than treating the 3000 W label or the number of sockets as an independent capacity guarantee.
Battery & PV Compatibility
Select the DC input model to match the battery bank and verify its discharge capability, operating voltage, cable sizing and protection devices. Confirm the supplied unit’s input rating before connection. Use a separate, correctly matched solar charge controller for PV charging; do not connect PV modules directly to the inverter battery input. Check the equipment manufacturer’s waveform requirements and starting demand. Modified sine wave output should not be assumed suitable for every motor, compressor or sensitive electronic load.
OEM & Order Information
For NFC-3000, send your input voltage, socket requirements, intended load, destination market and quantity. Contact GERIXI sales to confirm logo, label and packaging customization, MOQ, quotation and model-specific technical documents. Confirm the exact configuration and commercial terms before ordering.
FAQ
Can the NFC-3000 label and packaging be customized?
Share the input model, required artwork and order quantity. Ask sales to confirm branding options and keep the approved continuous-output specification consistent across technical and packaging documents.
What technical and clearance documents should accompany a bulk order?
Request the model-specific specification sheet and applicable compliance documents. In particular, confirm the supplied input voltage and the distinction between the 3000 W label and catalog continuous output.
How should warranty and load capability be confirmed?
Send the full load schedule and starting-current requirements. Obtain written confirmation of the intended operating conditions, warranty period, exclusions and after-sales process.
Related Products
For comparison, ask GERIXI sales about NFC-1000 and NFC-2000. Compare continuous output, enclosure dimensions and DC input model before choosing an alternative.
