Product Specifications
- Model / Series
- NPS12-300
- Product Dimensions
- 186 × 111 × 58 mm
- System Voltages
- 12V DC
- Conversion Efficiency
- >88% (full load)

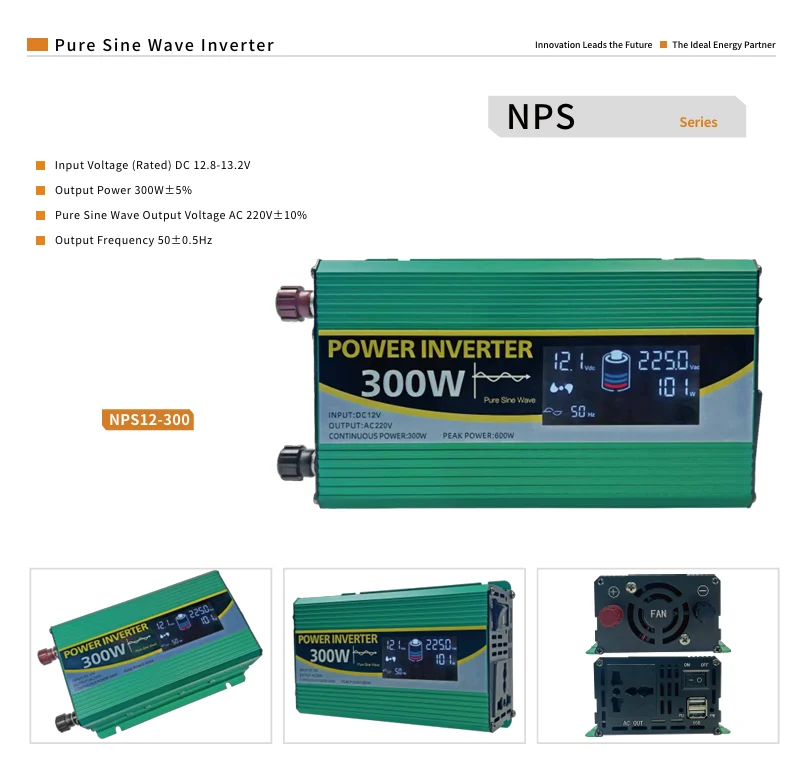

The NPS12-300 converts power from a 12 V DC battery system to 220 V AC pure sine wave output, with 300 W continuous output power. Its digital display makes operating information easy to read, while the aluminum housing and cooling fan support heat dissipation. At 186 × 111 × 58 mm and 591 g, this is the lowest-power NPS option among the models on these pages.
Key Features
- 300 W continuous pure sine wave output
- DC 12 V to AC 220 V conversion
- 50 Hz output; 5 V / 2.4 A USB output
- Full-load efficiency above 88%
- High/low voltage, overload and short-circuit protection
- Digital display and aluminum housing
Technical Specifications
| Model | NPS12-300 |
|---|---|
| Continuous output power | 300 W |
| Output waveform | Pure sine wave |
| Nominal DC input | 12 V |
| DC operating input range | 10–15 V |
| Rated input voltage | 12.8–13.2 V DC |
| AC output voltage | 220 V |
| Output frequency | 50 ± 0.5 Hz |
| USB output | 5 V / 2.4 A |
| Full-load efficiency | >88% |
| Low-voltage cutoff | 10.0 ± 0.3 V |
| Low-voltage recovery | 11.5 ± 0.3 V |
| Overvoltage cutoff | 15–16 V |
| Product dimensions | 186 × 111 × 58 mm |
| Net weight | 591 g |
| Housing | Dark green aluminum casing |
Applications
For battery-powered off-grid installations and manually operated backup AC power systems using a compatible 12 V battery bank. Check running load and starting requirements for each installation; this inverter is not specified here as an automatic transfer system.
Battery & PV Compatibility
Connect the inverter to a battery supply that matches its specified DC input. Verify the battery discharge capability, cables, protection devices and the equipment’s AC voltage and waveform requirements. PV modules require a separate, correctly matched solar charge controller; do not connect them directly to the inverter battery input.
OEM & Order Information
For NPS12-300, send the required DC input, AC output, plug requirements and intended load, destination market and order quantity. Ask GERIXI sales to confirm logo, label and packaging customization availability, MOQ, quotation and technical documentation for the exact configuration.
FAQ
Can NPS12-300 be ordered with custom labeling?
Send the exact 12 V to 220 V model and display requirements with your label artwork and quantity. GERIXI sales will confirm which branding and packaging options are available.
What documents should importers request for NPS12-300?
Ask for the technical specification and applicable compliance documents covering the exact voltage version. Confirm the document scope with your destination-market requirements before ordering.
How can buyers confirm warranty and load suitability?
Send the running and starting load requirements. Request the written warranty terms and service process for the agreed order configuration.
Related Products
For comparison, ask GERIXI sales about NPS12-2000; NPS12-1000; NPS12-500. Confirm the voltage, current or power specification for each alternative.
