Product Specifications
- Model / Series
- SC12-1000PS
- Product Dimensions
- 285 × 150 × 80 mm
- Continuous Output Power
- 1000 W ±10%
- Nominal Battery Voltage
- 12 V DC
- AC Input Voltage
- 220 V AC
- AC Output Voltage
- 220 V AC
- Output Waveform
- Pure sine wave
- Output Frequency
- 50 Hz ±0.5 Hz
- Maximum AC Charging Current
- 10 A
- Transfer Time
- 20 ms

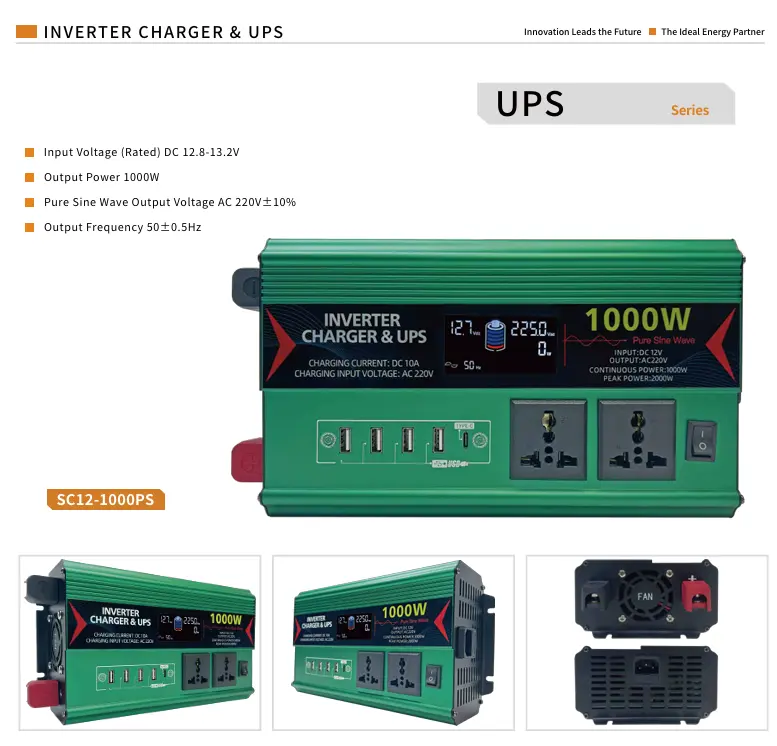

SC12-1000PS is a 1000 W pure sine wave inverter charger with UPS operation for 12 V battery systems. It provides 220 V AC output and up to 10 A mains-powered battery charging. For distributors supplying compact backup-power equipment, its integrated charger reduces the number of separate units required in a battery backup installation. Contact GERIXI to confirm configuration and available branding options.
Key Features
- 1000 W continuous pure sine wave inverter output.
- Built-in 10 A battery charging from 220 V AC.
- 12 V battery operation with a specified 10–15 V DC operating range.
- UPS transfer time specified as 20 ms; check load ride-through requirements.
- Digital operating display and fan cooling.
- High/low voltage, overload, short-circuit and reverse-polarity protection functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SC12-1000PS |
| Continuous inverter output | 1000 W ±10% |
| Waveform | Pure sine wave |
| Battery system | 12 V DC |
| Inverter DC operating range | 10–15 V DC |
| AC charging input | 220 V AC |
| Maximum battery charging current | 10 A |
| AC output | 220 V AC |
| Output frequency | 50 Hz ±0.5 Hz |
| UPS transfer time | 20 ms |
| USB output | 5 V / 2.4 A |
| Full-load efficiency | >88% |
| Dimensions | 285 × 150 × 80 mm |
| Net weight | 1785 g |
Applications
For distributors and installers specifying battery backup for compatible residential and small-business equipment. Size connected loads within the 1000 W output capability and check starting demand separately. The specified 20 ms transfer is not a zero-interruption supply; confirm compatibility with equipment that requires uninterrupted operation.
Battery & PV Compatibility
Select a compatible 12 V battery with adequate discharge capability. Confirm battery chemistry and the charging profile with GERIXI before ordering. This model charges from 220 V AC; a direct PV input is not specified. Solar integration requires a separately selected solar charge controller. Follow the supplied installation instructions for cabling, fusing and polarity.
OEM & Order Information
Send your quantity, destination market, required configuration and logo or packaging requirements to GERIXI. Request confirmation of available customization, MOQ, quotation and technical documents for the supplied unit.
FAQ
Can distributors request customized packaging?
Submit your artwork, packaging language and intended order quantity so GERIXI can confirm available options and order conditions.
Which import documents should accompany this model?
Request compliance documents for the exact model and destination market. Confirm applicability before import; certification coverage is not assumed.
How do we obtain warranty terms for backup installations?
Provide the battery specification, connected loads and installation conditions to obtain the applicable written warranty terms before purchase.
Related Products
Ask GERIXI about other UPS inverter capacities and standalone SC battery chargers for different charging and backup-power requirements.
