Product Specifications
- Model / Series
- SD1024A / SD2024A / SD3024A
- Product Dimensions
- 184 × 92 × 48 mm
- Controller Type
- PWM
- System Voltages
- 12V, 24V
- Rated Charge Current
- 10A / 20A / 30A
- Current Filter Band
- 21A-40A
- Maximum PV Open-Circuit Voltage
- 50V
- Supported Battery Types
- Lead-acid, LiFePO4, lithium-ion

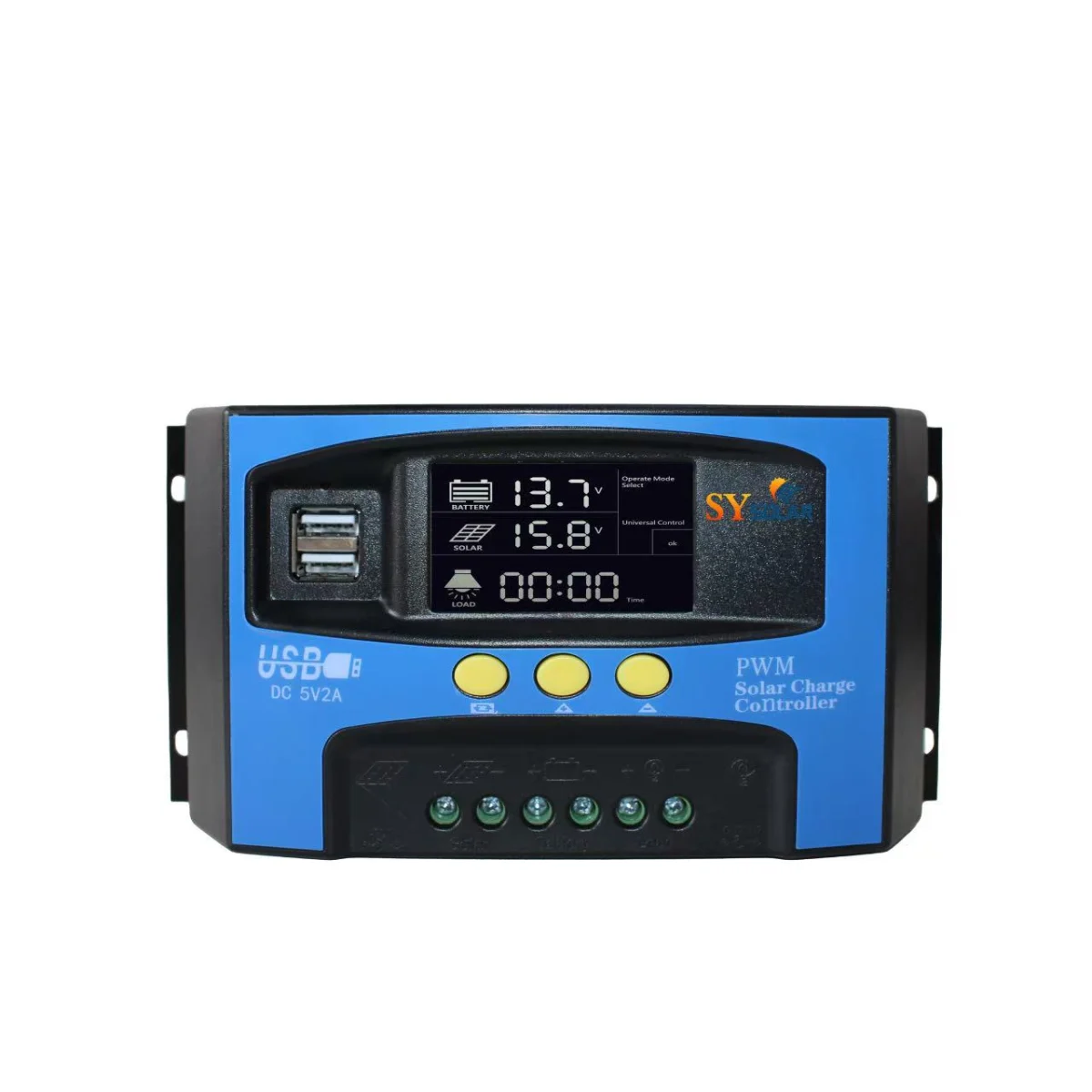

SD-A supplies 10 A, 20 A and 30 A PWM charging options for 12 V/24 V solar battery systems. The 184 × 92 × 48 mm housing, 50 V maximum PV open-circuit voltage and timed load switching provide practical selection points for small off-grid installations.
Key Features
- 10 A / 20 A / 30 A rated charging current
- 12 V/24 V automatic voltage recognition
- 50 V maximum PV open-circuit voltage
- Supports lead-acid, LiFePO4 and lithium-ion batteries
- 5 V USB output; load timer up to 24 hours; manual load switching
Technical Specifications
| Model options | SD1024A / SD2024A / SD3024A |
|---|---|
| Controller type | PWM |
| Battery system voltage | 12 V, 24 V |
| Rated charging current | 10 A / 20 A / 30 A |
| PV open-circuit voltage limit | 50 V |
| Battery types | Lead-acid, LiFePO4, lithium-ion |
| Dimensions | 184 × 92 × 48 mm |
| Model | Rated Charge Current | Rated Load Current | System Voltage |
|---|---|---|---|
| SD1024A | 10 A | 10 A | 12 V, 24 V |
| SD2024A | 20 A | 20 A | 12 V, 24 V |
| SD3024A | 30 A | 30 A | 12 V, 24 V |
5 V USB output, load delay shutdown up to 24 hours, manual load switching and adjustable battery voltage settings. Maximum PV open-circuit voltage: 50 V. Blue plastic housing with an aluminum heat sink base and LCD display.
Dimensions: 184 × 92 × 48 mm. Operating temperature: −10°C to +45°C. Protection rating: IP21.
Applications
For off-grid solar battery charging, rural installations and distributor supply programs. Where timed load control is listed, match the connected DC load and schedule to the selected controller.
Battery & PV Compatibility
Match the battery voltage and charging settings to the selected battery chemistry. The listed PV voltage is an open-circuit specification, not a guarantee that every panel configuration in that range suits every battery voltage. Confirm the solar array against the model instructions, including its cold-weather open-circuit voltage. Connect the battery first, then PV, and then the DC load.
OEM & Order Information
For SD1024A / SD2024A / SD3024A, send the required battery voltage, charging-current option, PV configuration, destination market and order quantity. Ask GERIXI sales to confirm logo, label and packaging customization availability, MOQ, quotation and technical documentation for the exact configuration.
FAQ
Can the 10 A / 20 A / 30 A configuration be supplied with our branding?
Send your selected model, 12 V, 24 V battery system and branding artwork. Sales will confirm the available customization scope and order requirements.
Which compliance documents apply to this PWM controller?
Request documents listing the exact model and confirm their scope against the destination market requirements. A certificate for another controller or series should not be assumed to cover this order.
What should be confirmed about warranty for this installation?
Provide the battery type, PV configuration and expected installation conditions. Obtain the written warranty period, exclusions and service procedure for the selected model before placing the order.
Related Products
For comparison, ask GERIXI sales about SS4880C / SS48100C; SS4840B / SS4860B; SS4820A / SS4830A. Confirm the voltage, current or power specification for each alternative.
