Product Specifications
- Model / Series
- SV24-1000PS
- Product Dimensions
- 245 × 210 × 92 mm
- System Voltages
- 12 V / 24 V automatic identification
- Rated Charge Current
- 40 A
- Maximum PV Open-Circuit Voltage
- 50 V
- Conversion Efficiency
- >82%

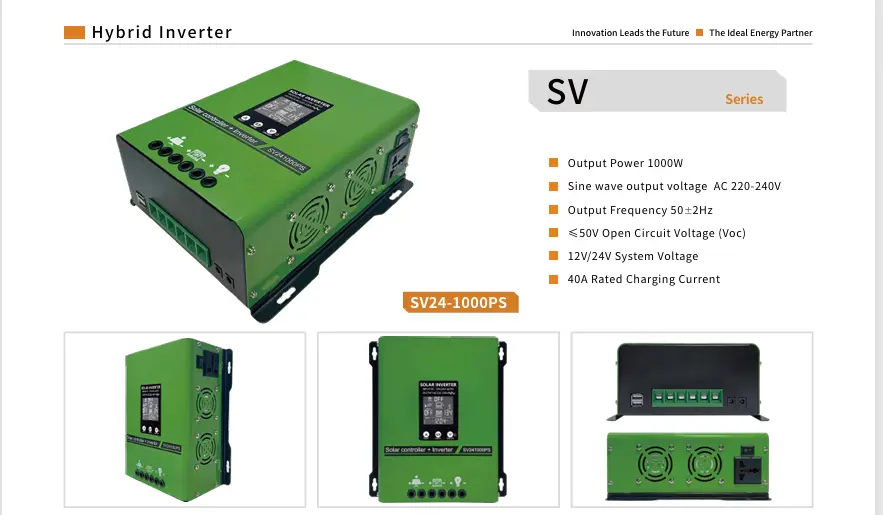

SV24-1000PS is a 1000 W solar inverter for 12 V and 24 V battery systems, with up to 40 A solar charging and a maximum PV open-circuit voltage of 50 V. This 1000 W model combines a 40 A solar charging stage and battery-to-AC conversion for integrators specifying larger loads within the SV range. Contact GERIXI to discuss the supplied configuration and branding requirements.
Key Features
- 1000 W continuous AC output, with a catalog tolerance of ±10%.
- Integrated solar charging rated up to 40 A.
- Automatic identification of 12 V and 24 V battery systems.
- 220 V AC output at 50 Hz, plus 5 V USB output.
- Digital operating display, USB ports and a fan-cooled enclosure for integrated installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SV24-1000PS |
| Continuous output power | 1000 W ±10% |
| Battery system voltage | 12 V / 24 V, automatic identification |
| Maximum solar charging current | 40 A |
| Maximum PV open-circuit voltage | 50 V |
| AC output voltage | 220 V ±10% |
| AC output frequency | 50 Hz ±2 Hz |
| USB output | 5 V / 2.4 A |
| Full-load efficiency | >82% |
| Product dimensions | 245 × 210 × 92 mm |
| Net weight | 2621 g |
Applications
Suitable for procurement planning for off-grid system integration, subject to confirmation of load compatibility. Select connected equipment by continuous demand and starting requirements, and confirm the output waveform for the supplied version before ordering sensitive or motor-driven loads.
Battery & PV Compatibility
Use a compatible 12 V or 24 V battery system. Confirm battery chemistry and charging settings before installation. Keep the array open-circuit voltage within the 50 V limit, including cold-weather voltage rise. The catalog recommends panel operating voltages of 15–23 V for 12 V charging and 30–46 V for 24 V charging; confirm array power and current with GERIXI before finalizing the design. Follow the supplied wiring instructions, connecting the battery before the PV array.
OEM & Order Information
Send your quantity, destination market, load requirements and logo or packaging specifications to GERIXI. Contact the sales team to confirm available customization, MOQ, quotation and technical documentation for the selected model.
FAQ
Can this model be included in a private-label project supply?
Send the project quantity and branding specification for review. Confirm customization availability and the approved configuration in the quotation.
How do we verify documentation for a project tender?
Ask GERIXI for the documents applicable to SV24-1000PS and have the importer check them against the destination requirements. Do not assume documents for another SV model cover this unit.
What project details should accompany a warranty enquiry?
Provide the intended loads, installation conditions and order details to obtain the applicable written warranty terms before purchase.
Related Products
Ask GERIXI about other SV solar inverter capacities for projects with different charging-current and AC-load requirements.
