Product Specifications
- Model / Series
- SV24-200MS
- Product Dimensions
- 144 × 94 × 58 mm
- System Voltages
- 12 V / 24 V automatic identification
- Rated Charge Current
- 10 A
- Maximum PV Open-Circuit Voltage
- 50 V
- Conversion Efficiency
- >82%

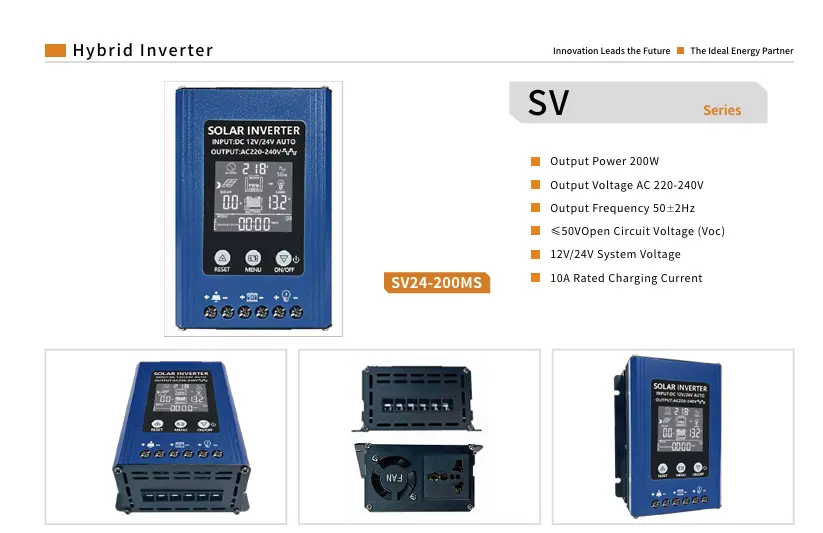

SV24-200MS is a 200 W solar inverter for 12 V and 24 V battery systems, with up to 10 A solar charging and a maximum PV open-circuit voltage of 50 V. A compact enclosure combines solar battery charging and AC power conversion for small off-grid installations. Contact GERIXI to discuss the supplied configuration and branding requirements.
Key Features
- 200 W continuous AC output, with a catalog tolerance of ±10%.
- Integrated solar charging rated up to 10 A.
- Automatic identification of 12 V and 24 V battery systems.
- 220 V AC output at 50 Hz, plus 5 V USB output.
- Digital status display and fan cooling.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SV24-200MS |
| Continuous output power | 200 W ±10% |
| Battery system voltage | 12 V / 24 V, automatic identification |
| Maximum solar charging current | 10 A |
| Maximum PV open-circuit voltage | 50 V |
| AC output voltage | 220 V ±10% |
| AC output frequency | 50 Hz ±2 Hz |
| USB output | 5 V / 2.4 A |
| Full-load efficiency | >82% |
| Product dimensions | 144 × 94 × 58 mm |
| Net weight | 438 g |
Applications
Suitable for procurement planning for compact distribution projects, subject to confirmation of load compatibility. Select connected equipment by continuous demand and starting requirements, and confirm the output waveform for the supplied version before ordering sensitive or motor-driven loads.
Battery & PV Compatibility
Use a compatible 12 V or 24 V battery system. Confirm battery chemistry and charging settings before installation. Keep the array open-circuit voltage within the 50 V limit, including cold-weather voltage rise. The catalog recommends panel operating voltages of 15–23 V for 12 V charging and 30–46 V for 24 V charging; confirm array power and current with GERIXI before finalizing the design. Follow the supplied wiring instructions, connecting the battery before the PV array.
OEM & Order Information
Send your quantity, destination market, load requirements and logo or packaging specifications to GERIXI. Contact the sales team to confirm available customization, MOQ, quotation and technical documentation for the selected model.
FAQ
Can we request branded packaging for SV24-200MS?
Submit your artwork and order requirements so GERIXI can confirm the available customization and order conditions.
What compliance documents are available for this model?
Request documents covering the exact supplied model and destination market before placing an import order. Certification availability must be confirmed for the ordered configuration.
How should we confirm warranty coverage for a 200 W project?
Provide the intended loads, installation conditions and order details to obtain the applicable written warranty terms before purchase.
