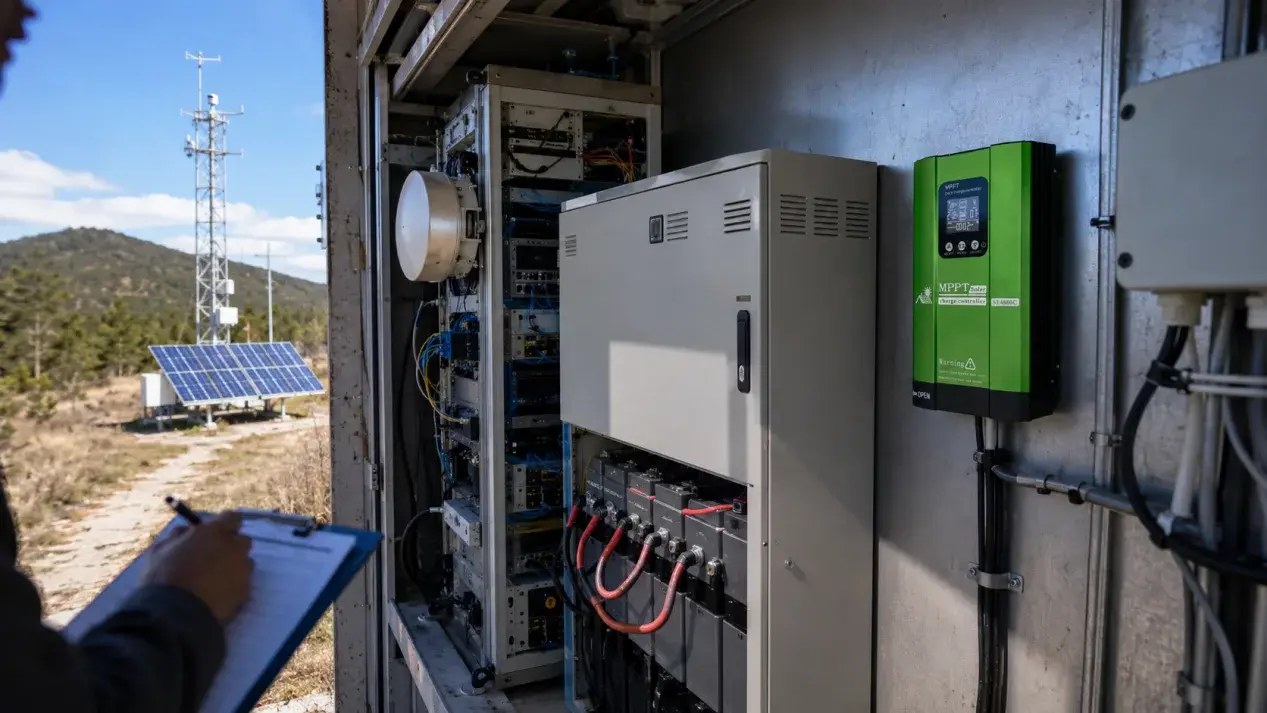

Application planning example. The accompanying scene illustrates a possible use environment; it is not documentation of a verified GERIXI customer installation or an installation wiring diagram.
Remote telecom and monitoring equipment often operates where reliable grid power is unavailable. A dedicated solar power system can keep communication, telemetry and control loads running by combining photovoltaic generation, controlled battery charging and protected DC distribution.
A proposed remote-site design can combine an MPPT controller, a compatible solar array and battery storage. Equipment placement, environmental protection and overnight autonomy must be calculated for the actual site.
Why MPPT control is useful
An MPPT controller manages the power transferred from the solar array to the battery system and can improve charging performance when panel voltage is higher than battery voltage. The selected controller must remain within its maximum photovoltaic open-circuit voltage under local temperature conditions and provide enough charging current for the array.
Typical system components
- Solar panels positioned for the available site exposure
- MPPT charge controller matched to panel and battery voltage
- Battery storage sized for the required autonomy period
- DC protection and correctly sized cabling
- Weather-protected telecom, monitoring or control equipment
Remote-site design considerations
System sizing should consider the continuous equipment load, hours of operation, seasonal solar conditions and the number of backup days required. Enclosures need suitable ingress protection and ventilation, while cable entry points should be protected against moisture and mechanical damage.
Remote sites also benefit from clear status monitoring and a layout that allows technicians to inspect the charging system without disturbing communication equipment. Battery chemistry and charging parameters must be confirmed before commissioning.
Applications
Comparable configurations are used for telecom repeaters, environmental monitoring, security systems, agricultural telemetry and other unattended field equipment. A qualified installer should confirm grounding, protection and local electrical requirements.
Send Gerixi the panel specifications, battery voltage, continuous load and required autonomy period to compare suitable controller models.
